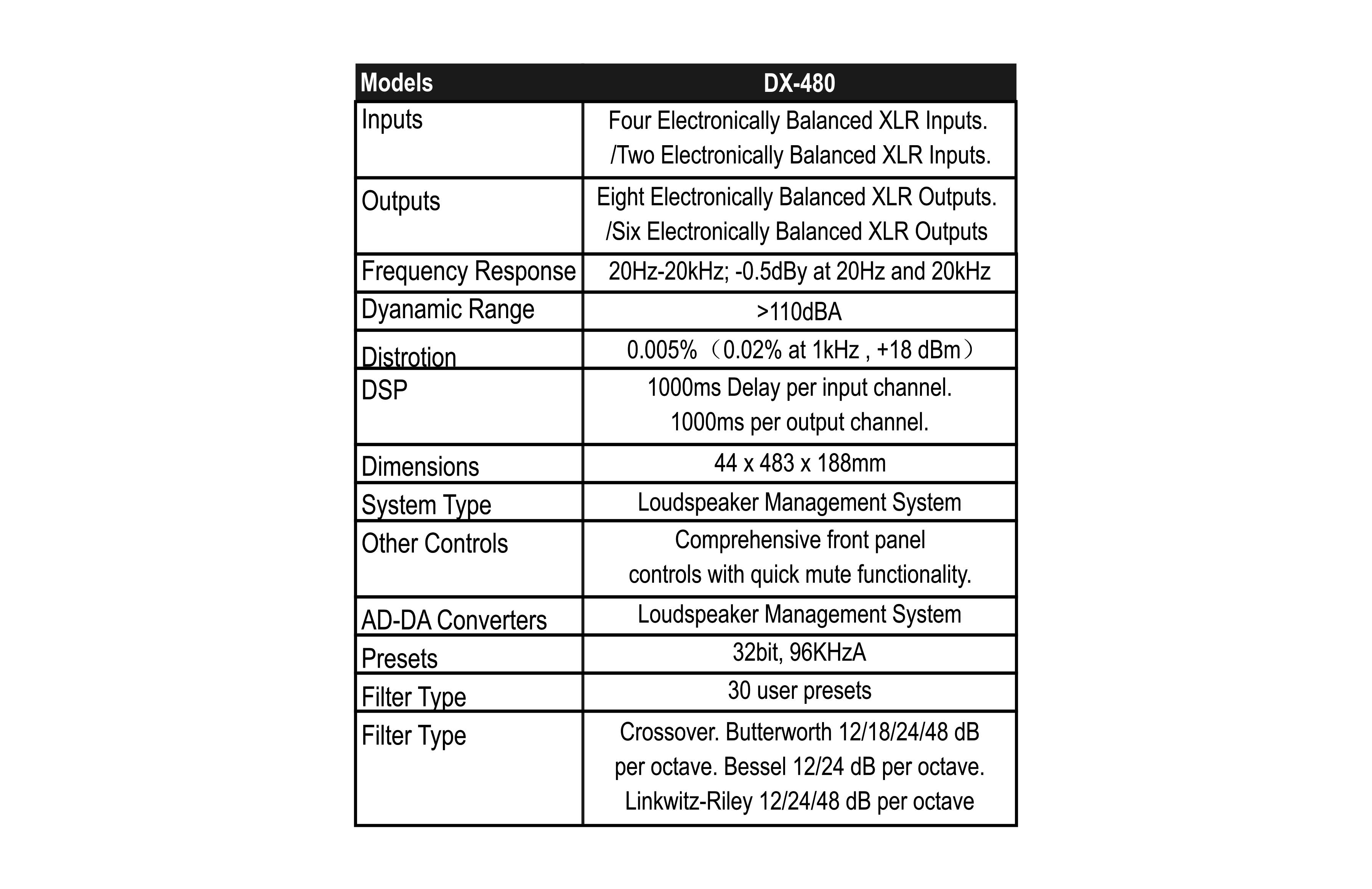

The DX series High End Digital Speaker Management systems combine an outstanding full 96kHz DSP processor with Floating 32 Bit AD/DA Converters to provide Superb Sonic Performance. The DX480 offers 4 analog inputs, 8 analog outputs and 2 AES/EBU inputs and the DX260 has 2 analog inputs, 6 analog outputs and a AES/EBU inputs. Easy setup is assured with intuitive front panel controls and an interactive LCD display for local setup, or a dedicated PC control interface for remote monitoring and configuration via USB or RS485 and dedicated control software. The Dx Series supports a full matrix mixing mode where inputs may be routed/mixed in any ratio to any output. Designed for maximum versatility, these units provide all the processing and control necessary for both live and fixed installation use.

• Convenient front panel controls or remote operation
• 8 band parametric equalization per input channel
• 6 band parametric equalization per output channel
• Adjustable Delay time up to 1000 ms for every input and output channel
• Noise gate and phase on each input
• Crossover filters with slopes from 12inch to 48 dB/ Octave including Butterworth, Bessel, Linkwitz-Riley
• Limiter and phase of each output
• Full matrix routing where inputs may be routed/mixed to any output
• 30 Presets with Copy function
• Password Protect Security
• Front Panel USB connector for direct PC communications
• RS485 connection for system setup, monitoring and control via fully manageable remote PC software
